Learn how to design a real-time WebSocket streaming architecture using Redis Stack to store, process, and deliver live data with ultra-low latency. This blog covers system design, data flow, scalability, and best practices for building high-performance live data platforms.

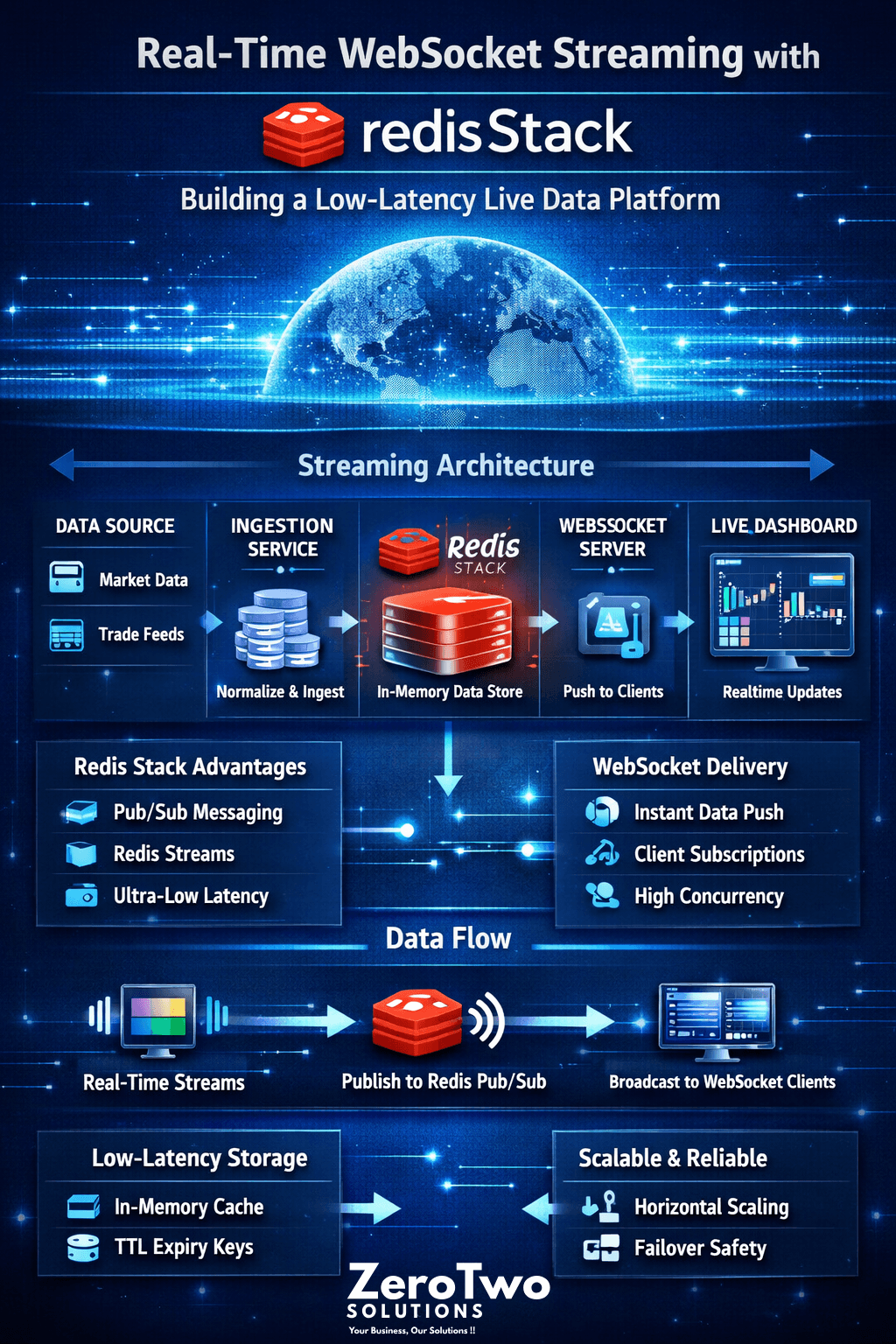

🏗️ Architecture Overview
The system consists of a WebSocket server that accepts client connections, a Redis Stack instance for pub/sub messaging and stream storage, a data ingestion layer that pushes events into Redis Streams, and a fan-out layer that reads from Redis and pushes to connected WebSocket clients.
🔴 Why Redis Stack?
Redis Stack combines Redis core with RedisJSON, RediSearch, RedisTimeSeries, and RedisBloom. For real-time streaming, the key features are Redis Streams for persistent, ordered event logs, Pub/Sub for instant fan-out to thousands of subscribers, and in-memory storage for sub-millisecond read/write latency.
🚀 WebSocket Server Design
Use a Node.js server with the ws library or a Python server with websockets. Each client connection subscribes to one or more Redis channels. When new data arrives in Redis, the server fans it out to all subscribed clients within milliseconds.
📊 Handling Scale
For horizontal scaling, use Redis Cluster to distribute data across multiple nodes. Use a load balancer with sticky sessions or a shared Redis pub/sub channel so all WebSocket server instances receive the same events. Monitor connection counts, message throughput, and Redis memory usage with Prometheus and Grafana.
⚡ Performance Tips
Keep Redis payloads small - serialize only what the client needs. Use Redis Streams with consumer groups for reliable delivery and replay. Set appropriate TTLs on stream entries to manage memory. Use connection pooling on the server side to reduce Redis connection overhead.
✅ Final Thoughts
Redis Stack plus WebSockets is one of the most powerful combinations for building real-time platforms. Whether you are building a trading dashboard, live analytics tool, or collaborative application, this architecture delivers the speed and reliability your users expect.
